[ABAP] qRFC 개발 실습

SMQR에 Queue를 등록하고 Unregister 해둔다

The simplest qRFC calling program on ABAP server #SAP - Qiita

The simplest qRFC calling program on ABAP server - Qiita

첫번째 게시물의 코드를 적당히 수정하여 다음과 같이 작성한다

Report YSIMPEST_QRFC

* Set an outbound queue name
  CALL FUNCTION 'TRFC_SET_QUEUE_NAME'
    EXPORTING
      qname              = 'YTEST01'
    EXCEPTIONS
      invalid_queue_name = 1
      OTHERS             = 2.
  IF sy-subrc <> 0.
    MESSAGE e001(00) WITH 'TRFC_SET_QUEUE_NAME error'.
  ENDIF.

* Call RFC module as qRFC
  CALL FUNCTION 'ZTEST_IM'
    IN BACKGROUND TASK
    AS SEPARATE UNIT.

  COMMIT WORK.
  IF sy-subrc <> 0.
    MESSAGE e001(00) WITH 'Commit error with return code:' sy-subrc.
  ENDIF.

qRFC with Outbound Queue & Inbound Queue – SAPCODES

qRFC with Outbound Queue & Inbound Queue

해당 게시물을 참조하여 queue를 등록하고 unregister 해두자.



FUNCTION ZTEST_IM.
	message 'Error' type 'E' display like 'E'.
ENDFUNCTION.

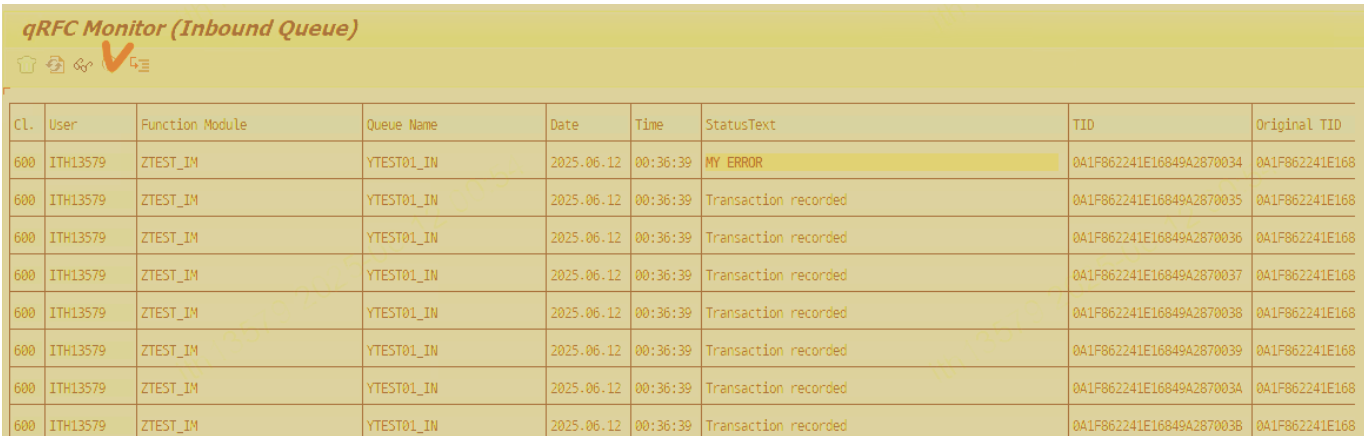

선택하고 실행해보면 다음과 같이 메세지가 있으면 Status Text가 남는 것을 볼 수 있다.





Key Function Modules for qRFC ABAP Code

To programmatically control qRFC, the following function modules are used within your custom ABAP code:

• TRFC_SET_QUEUE_NAME: Sets the queue name for the subsequent CALL FUNCTION ... IN BACKGROUND TASK. This is crucial for managing the processing order within a logical unit of work (LUW).
• TRFC_SET_QIN_PROPERTIES or TRFC_SET_QOUT_PROPERTIES: Sets properties for inbound (QIN) or outbound (QOUT) queues, respectively.
• CALL FUNCTION ... IN BACKGROUND TASK DESTINATION 'NONE': This is the core syntax to register the function module for asynchronous execution within the queue. The destination is often 'NONE' when using the current system's queue, or a specific RFC destination (defined in SM59) when communicating between systems (e.g., ERP and EWM).
• COMMIT WORK: Triggers the actual processing of the queued function calls.

DATA: lv_queue_name TYPE trfcqin-qname.

* Define a unique queue name (e.g., based on document number)
CONCATENATE 'Z_DLVRY_' some_delivery_number INTO lv_queue_name.

* Set the queue name for the following function call
CALL FUNCTION 'TRFC_SET_QUEUE_NAME'
  EXPORTING
    qname                 = lv_queue_name
  EXCEPTIONS
    invalid_queue_name    = 1
    OTHERS                = 2.

IF sy-subrc = 0.
* Call the function module in background task (qRFC)
  CALL FUNCTION 'Z_EWM_PROCESS_DELIVERY' IN BACKGROUND TASK DESTINATION 'NONE'
    TABLES
      it_delivery_data = lt_delivery_data.
ENDIF.

* Commit the work to trigger the qRFC processing
COMMIT WORK.
